3D Printing

3D Printing with 3D Fusion Printers are designed to make a signage manufacturer’s life easier and is a must-have for every signage company. Large format 3D-printers are transforming the way advertising are created. This new generation fabricator is very economical and time-saving and have a workforce that no human being can equal. It does not need any support, small quantities of material is being used and the printer never sleeps.

The custom-designed bed-size is 800mm x 600mm and can print up to 130mm high. The filament used for printing is PETG ( Polyethylene Terephthalate Glycol) which endures high UV-levels. We currently have 12 colours available, but any pantone colour can be matched on request.

The unique dual-extruder system is designed to print at a very fast speed of up to 50mm/s with a 2.7mm nozzle. The semi-automatic bed leveling system is implemented to print your return 100% accurate with no wastage. CURA, the open source software used, is straightforward and can easily be mastered. 3D Fusion is any signmaker’s ultimate dream machine

3D Fusion printer saves you time and money on 3D signage returns. Fabricated signs made easy.

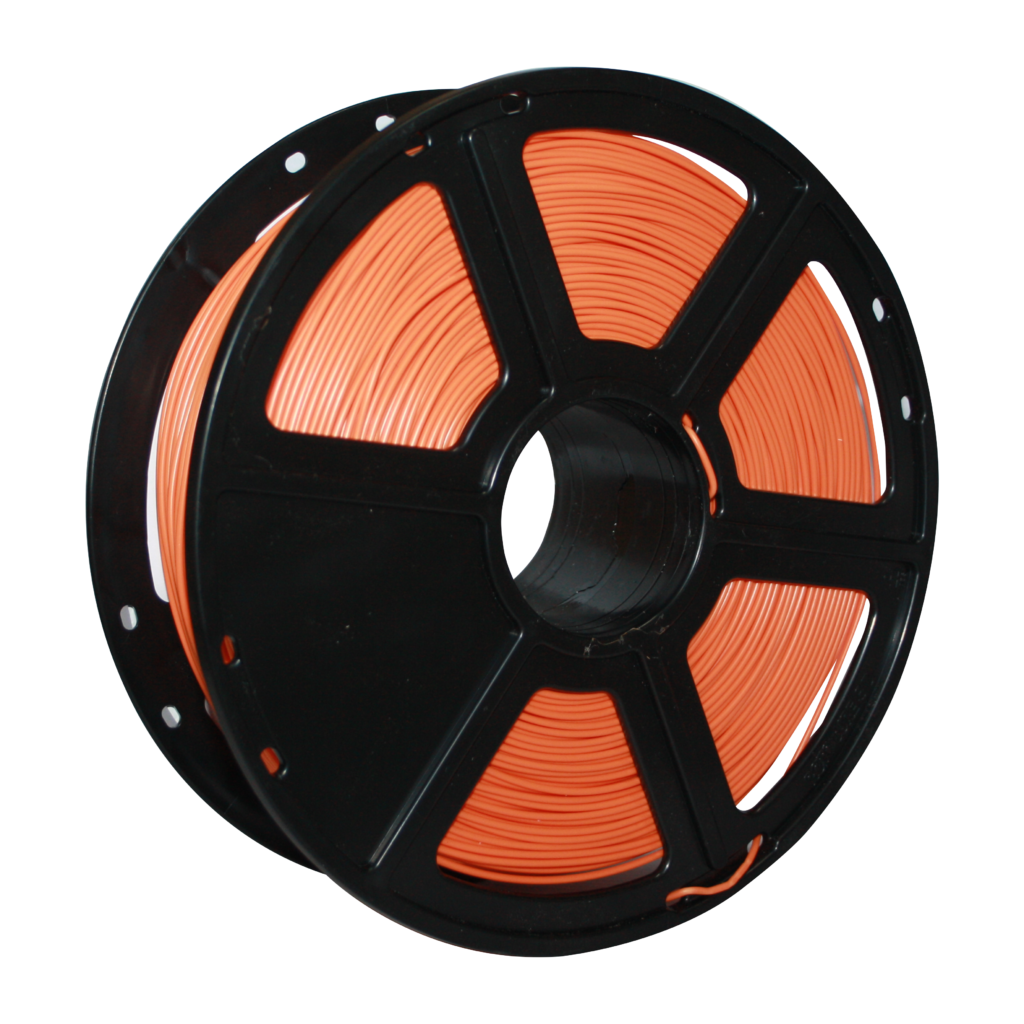

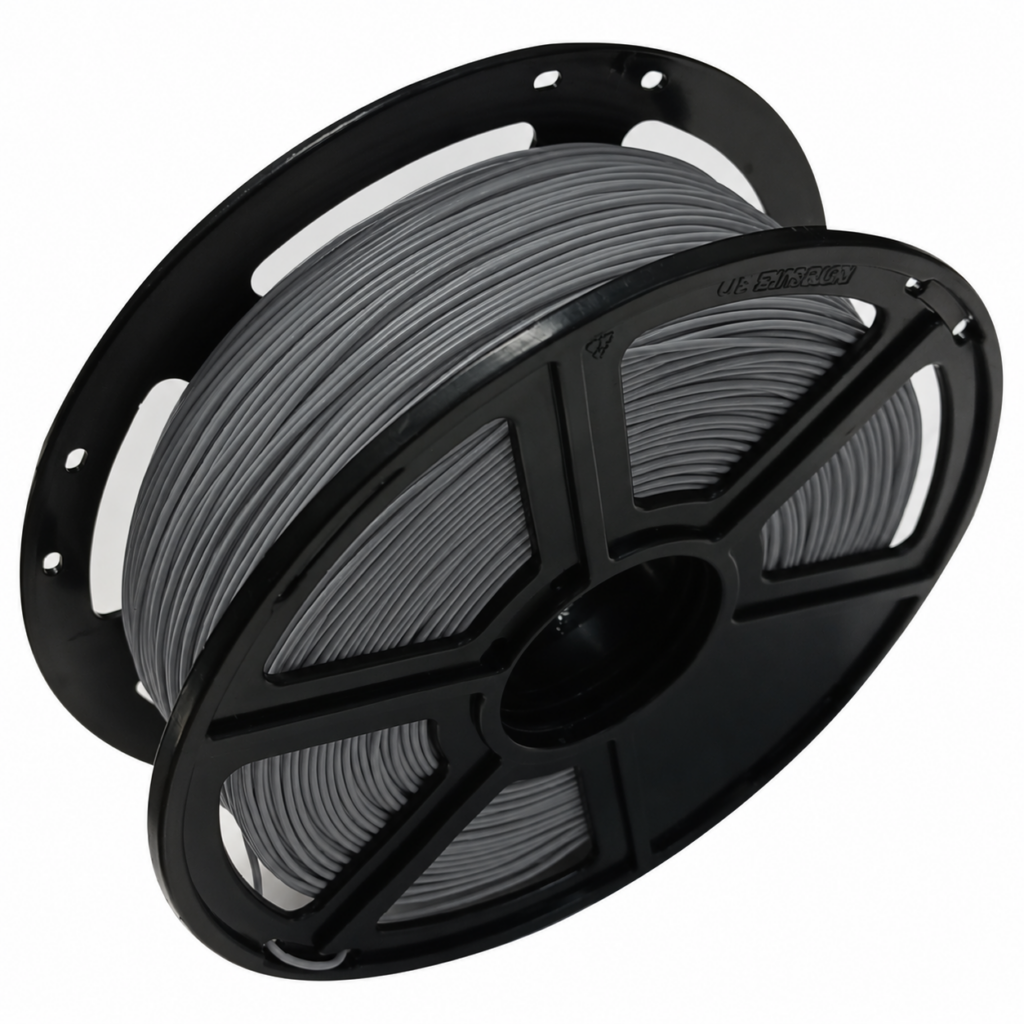

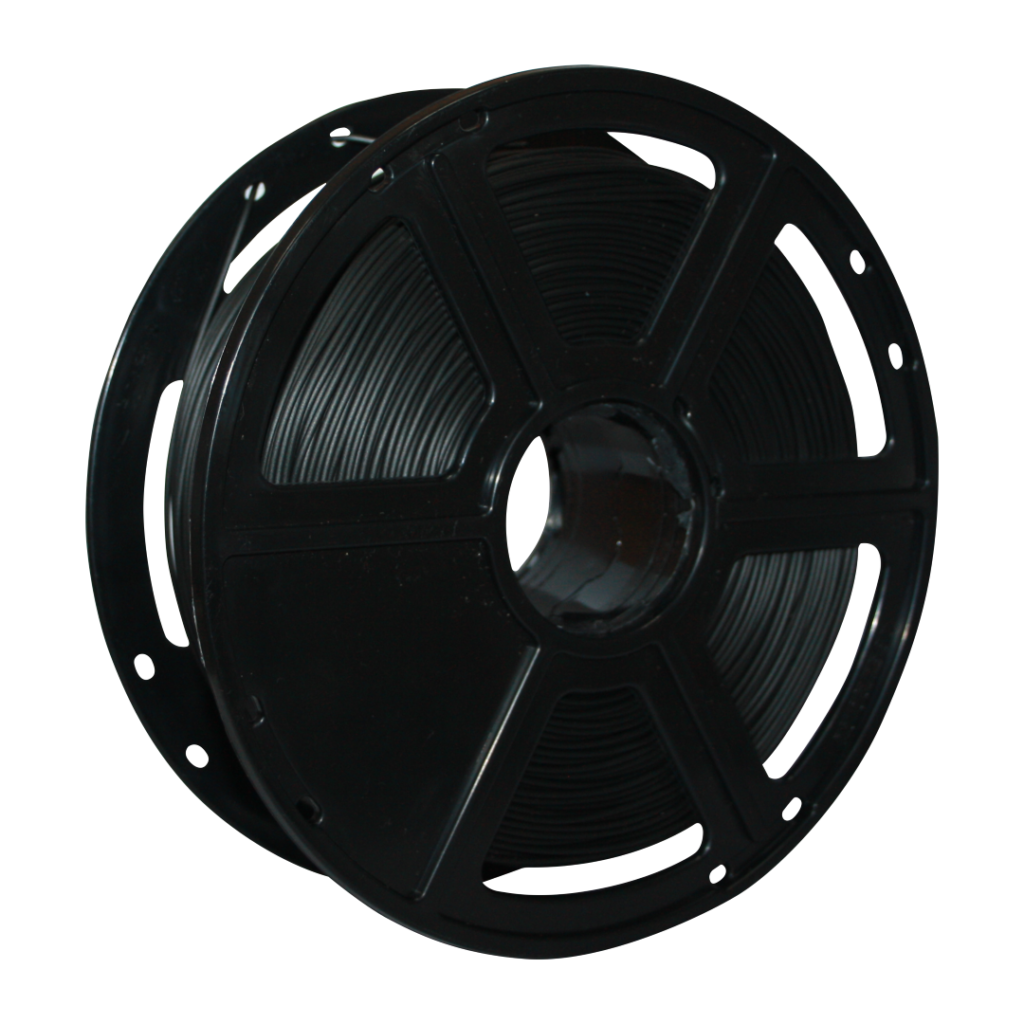

PETG filament from 3D Fusion. walking on signage fabricated returns

PETG filament from 3D Fusion.

3D Fusion Signage Fabricator - Fabrication - 3D Printing

3D Sign Fabrication

Prototypes still running strong

3D Fusion Channel Letter Printing

3D Fusion Printers making life easy

Creating Complex Channel Letters and Logos with 3D Fusion Signage Printers

#FESPAAFRICA - Creating Complex Channel Letters and Logos with 3D Fusion Signage Printers

3D Fusion Printers - Creating Complex Channel Letters and Logos with 3D Fusion Signage Printers

3D Fusion

SPECIFICATION

INSTAGRAM FEED

Follow on Instagram

This error message is only visible to WordPress admins

Error: No posts found.

SPECIFICATION

E

Build Size

800 x 600 x 130mm (LxWxH)

E

Extruder

Unique Dual-Extruder system

E

Print speed

10 – 50 mm/s

E

Travel speed

10 – 120 mm/s

E

Layer height resolution

0,5 – 1.5 mm (depending on the nozzle)

E

Print technology

FDM/FFF (Fused Deposition Method)

E

Nozzle diameter

1.2 mm/ 1.8mm/ 2.7mm

E

Print bed

Heated bed (20 – 100 degrees)

E

Bed leveling

Semi-automatic bed leveling

E

Software - Open Source

CURA

E

Shipping dimensions

1190 x 869 x 1235 mm (LxWxH)

E

AC port

220V / ~15A / 60 Hz / 2400 Watt

E

Weight

90 kg

E

Connections

Wi-Fi (direct printing)

E

Print Material

PETG 1.75mm

E

File Types

STL

E

3D Printer dimensions

1115 x 794 x 1160 mm (LxWxH)


