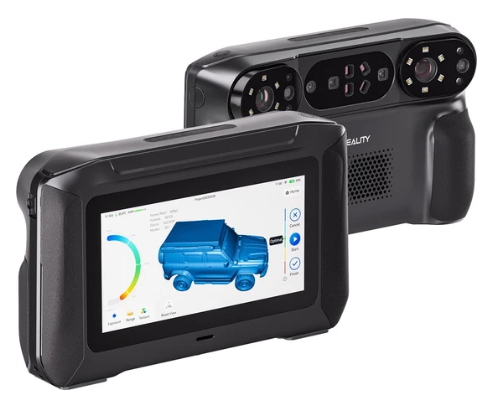

Creality CR-SERMOON-P1 Professional Standalone 3D Scanner

FREE DELIVERY

Key Features

• Professional all-in-one standalone 3D scanner
• Accuracy up to 0.02mm
• Volumetric accuracy of 0.02mm + 0.06mm/m
• Hybrid Blue Laser + NIR structured-light technology
• 22 cross blue laser lines for high-speed scanning
• 7 parallel blue laser lines for detailed scanning
• 1 single blue laser line for deep holes and difficult features
• NIR structured light for larger objects and markerless scanning
• Scan objects from approximately 5 × 5 × 5mm up to 4000 × 4000 × 4000mm
• Standalone blue-laser scanning up to 60FPS
• PC-connected blue-laser scanning up to 100FPS
• Up to 1,740,000 measurements/sec in PC-connected 22-line laser mode
• Scan many black and metallic surfaces without scanning spray
• Full-colour texture scanning

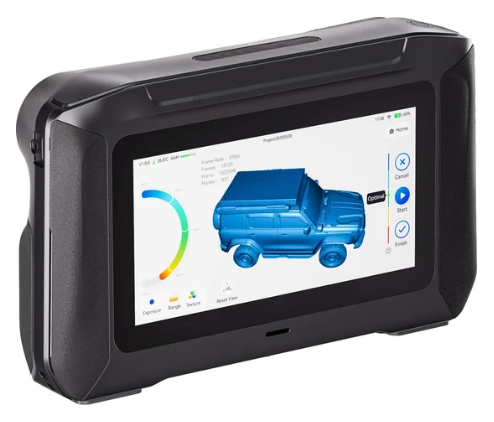

• Built-in 6-inch Full HD touchscreen
• Qualcomm 8-core 3.36GHz processor
• Adreno 740 GPU
• 24GB LPDDR5X RAM
• 256GB UFS 4.0 storage
• Built-in Wi-Fi 7
• Standalone, wireless-PC and wired-PC operation
• Two 3300mAh quick-swap batteries
• 65W fast charging
• High-precision glass calibration board
• Windows and macOS support

Creality’s current P1 specifications confirm the 0.02mm maximum laser accuracy, three operating modes, 24GB RAM, 256GB storage and hybrid laser/NIR scanning system.

Three Ways to Work

One of the biggest advantages of the SERMOON-P1 is its flexibility.

Standalone Mode

No computer is required.

Simply switch on the scanner and use its built-in 6-inch touchscreen and onboard processing hardware to capture and process your scan.

The P1 can perform scanning, point-cloud fusion, model processing and exporting directly on the device.

Wireless PC Mode

Connect wirelessly to your computer for a larger-screen workflow without having a data cable attached to the scanner.

Built-in Wi-Fi 7 provides high-speed wireless data transfer.

Wired PC Mode

For maximum scanning performance, connect the P1 directly to a compatible computer.

Blue-laser scanning speed increases from up to 60FPS in standalone operation to up to 100FPS when PC connected.

22 Cross Blue Laser Lines – Fast Scanning

The 22 cross-line laser mode is designed for quickly capturing the overall geometry and dimensions of components.

It’s particularly useful for:

• Automotive components
• Body panels
• Moulds
• Machinery
• Engineering components
• Medium and large manufactured parts

In standalone operation, the P1 can capture up to 1,044,000 measurements per second in this mode, increasing to approximately 1,740,000 measurements per second when connected to a PC.

7 Parallel Blue Laser Lines – Fine Detail

When surface detail becomes more important than maximum scanning speed, switch to the 7 parallel blue laser lines.

This mode is optimised for capturing intricate features and complex geometry with greater control.

Single Blue Laser – Deep Holes & Recesses

The P1 also includes a dedicated single blue laser line.

This mode is specifically designed for difficult areas such as:

• Deep holes
• Recesses
• Narrow gaps
• Internal features
• Complex mechanical components

Creality reports successful deep-hole scanning at a depth-to-diameter ratio of up to 5:1 under its test conditions.

NIR Markerless Scanning

Not every object requires laser scanning.

The P1 also incorporates near-infrared structured light, allowing fast markerless scanning of many medium and large objects.

This is particularly useful for:

• Human body scanning
• Sculptures
• Furniture
• Large objects
• Objects where applying markers would be impractical

The long-range infrared mode provides a capture area as large as approximately 1245 × 754mm at 1000mm distance.

Up to 0.02mm Accuracy

Blue-laser scanning can achieve accuracy of up to 0.02mm, with volumetric accuracy specified at:

0.02mm + 0.06mm/m

This makes the P1 suitable for professional workflows where dimensional accuracy matters, including:

• Reverse engineering
• Inspection
• CAD reconstruction
• Replacement-part reproduction
• Automotive customisation
• Product development
• Manufacturing

From Tiny Parts to Large Objects

The combination of laser and NIR scanning gives the P1 an exceptionally broad working range.

Creality specifies blue-laser scanning for objects from approximately 5 × 5 × 5mm up to 4000 × 4000 × 4000mm.

This means the same scanner can be used for a tiny precision component, an automotive part or a very large assembly.

Scan Black & Metallic Surfaces

The SERMOON-P1 is designed to capture many black and metallic objects without scanning spray.

This is particularly valuable in automotive and engineering environments, where surface preparation can otherwise add significant time to the scanning process.

Highly reflective, transparent or otherwise optically difficult surfaces may still require preparation depending on the application.

Full-Colour Texture Scanning

A built-in full-colour RGB camera works with 12 white supplemental LEDs to capture colour texture information together with geometry.

This expands the P1 beyond engineering applications into:

• Art and sculpture
• Digital archiving
• Cultural preservation
• Character modelling
• VR/AR
• Full-colour digital models

Powerful Computer Built Into the Scanner

The SERMOON-P1 effectively has a high-performance computing platform built directly into the scanner.

This hardware allows the scanner to process substantial 3D datasets without depending on an external computer for normal standalone operation.

Replaceable Dual-Battery System

For field work, the P1 uses replaceable 3300mAh batteries.

Two batteries are supplied, allowing one to be used while the other is available as a replacement.

Each battery also supports USB-C charging, with 65W PD 3.0 fast charging. Creality states that a battery can reach approximately 80% charge in 50 minutes.

Professional Applications

The CR-SERMOON-P1 is particularly well suited to:

• Reverse engineering
• Automotive scanning
• Dimensional inspection
• Manufacturing
• Product development
• Mechanical engineering
• Mould and tooling development
• Replacement-part reproduction
• 3D printing
• Digital archiving
• Art and antiques
• Research and education
• On-site field scanning

Technical Specifications

What’s Included

• 1 × Creality CR-SERMOON-P1 Professional 3D Scanner
• 2 × 3300mAh Replaceable Batteries
• High-precision glass calibration board
• Charging/power accessories
• Connection accessories
• Scanner accessories
• User documentation

Why Choose the CR-SERMOON-P1?

The CR-SERMOON-P1 is designed for customers who have moved beyond occasional hobby scanning and need a scanner that can become part of a professional workflow.

Its biggest advantage is independence.

Instead of carrying a scanner, laptop, power supply and cables around a vehicle, factory floor or customer site, the P1 puts the scanner, computer, screen, storage and battery into one handheld device.

At the same time, you aren’t sacrificing professional capability. You still get up to 0.02mm accuracy, 22+7+1 blue laser scanning, NIR structured light, full-colour capture, black/metal scanning and up to 100FPS performance when connected to a suitable PC.

For automotive work, reverse engineering, inspection and professional product development, the SERMOON-P1 is a significant step above Creality’s conventional handheld scanner range.
