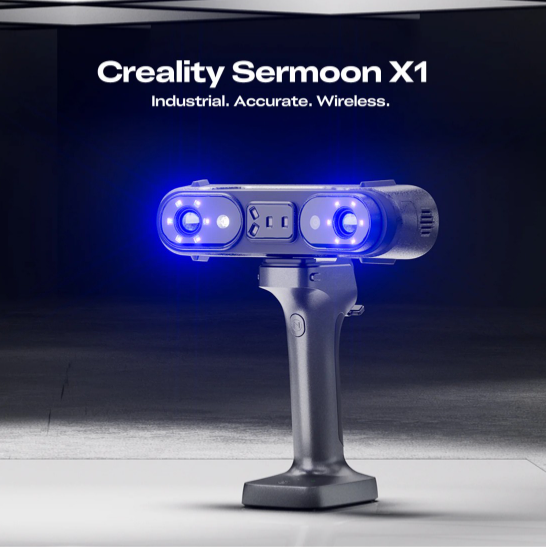

Creality CR-SERMOON-X1 Professional 3D Scanner

FREE DELIVERY

Key Features

• Professional industrial-grade 3D scanning
• Accuracy up to 0.02mm
• Volumetric accuracy of 0.02mm + 0.04mm/m
• Up to 0.02mm + 0.03mm/m with scale-bar photogrammetry
• Built-in photogrammetry
• 2 precision scale bars included
• 34 cross blue laser lines for rapid scanning
• 7 parallel blue laser lines for detailed scanning
• 1 single blue laser line for deep holes and recesses
• NIR structured-light scanning
• Up to 90FPS in parallel/single-line modes
• Up to 85FPS in cross-line mode according to Creality’s current X1 FAQ
• Up to approximately 1.734 million measurements per second
• Scan objects from approximately 5mm to 4000mm
• Deep-hole scanning up to 6:1 depth-to-diameter ratio
• Scan many black and metallic surfaces without scanning spray
• Large scanning field of view
• Full-colour texture scanning
• 2MP RGB colour camera
• CNC-machined all-metal optical structure
• AI temperature compensation
• Outdoor scanning capability
• ScanBridge included
• Wireless scanning via Wi-Fi 6
• 5000mAh battery
• More than 4 hours wireless operating time
• CrealityScan 4 software

Creality’s current FAQ specifies 90FPS for parallel and single-line modes and up to 85FPS for cross-line scanning.

34 Cross Blue Laser Lines – High-Speed Industrial Scanning

The X1 uses 34 cross blue laser lines to rapidly capture the geometry of medium and large components.

This mode is particularly well suited to:

• Automotive body panels
• Vehicle components
• Moulds
• Machinery
• Industrial components
• Large mechanical assemblies
• Manufacturing applications

The wide laser field allows the scanner to capture more surface area with each pass, improving productivity when working with larger objects.

7 Parallel Blue Laser Lines – Fine Detail

Switch to the 7 parallel blue laser lines when fine detail becomes more important.

This mode is designed for intricate surfaces, detailed mechanical features and smaller components where high-resolution geometry is required.

The parallel-line mode can operate at up to 90FPS, allowing detailed data to be captured quickly.

Single Blue Laser Line – Deep-Hole Scanning

One of the SERMOON-X1’s standout professional features is its dedicated single blue laser line.

It is specifically designed to capture areas that conventional scanners often struggle to reach, including:

• Deep holes
• Narrow slots
• Grooves
• Recesses
• Internal features
• Complex mechanical geometry

Creality reports successful scanning at a depth-to-diameter ratio of up to 6:1 under its test conditions.

Built-In Photogrammetry

This is one of the biggest reasons to choose the X1 for serious engineering work.

The SERMOON-X1 incorporates photogrammetry directly into the scanning workflow.

Using the supplied calibrated scale bars, the system can correct dimensional accuracy during reconstruction. Creality specifies volumetric accuracy of:

0.02mm + 0.04mm/m normally

and up to:

0.02mm + 0.03mm/m using the scale bars.

This becomes increasingly valuable when scanning larger components where small dimensional deviations can accumulate across the model.

Industrial-Grade Stability

High accuracy isn’t useful if it changes as the scanner heats up or moves around.

The X1 therefore uses a CNC-machined all-metal unibody optoelectronic mount and lens holder.

Creality combines this rigid construction with AI-driven temperature compensation and thermal management to help maintain stable accuracy during extended scanning sessions.

Large Field of View

The X1 provides an exceptionally large scanning field.

Creality specifies maximum fields of view of approximately:

Blue Laser: 650 × 531mm

Infrared: 1300 × 935mm

The larger field means fewer passes and fewer markers are required when capturing larger objects.

From Tiny Components to Large Objects

The hybrid laser and infrared system gives the X1 an extremely broad working range.

Creality positions it for objects ranging from approximately 5 × 5 × 5mm up to 4000 × 4000 × 4000mm.

That allows the same scanner to tackle:

• Bolts and precision components
• Mechanical parts
• Engine components
• Vehicle panels
• Moulds
• Furniture
• Sculptures
• Complete human bodies
• Large industrial components

NIR Marker-Free Scanning

For medium and large objects where maximum laser precision isn’t required, the X1 also incorporates near-infrared structured light.

NIR mode can use geometry or texture for tracking, allowing many suitable objects to be captured without applying reflective markers.

This is particularly useful for scanning people, sculptures, artwork and other feature-rich large objects.

Scan Black & Metallic Surfaces

The blue-laser system is designed to work effectively with many challenging surfaces, including:

• Black plastic
• Dark automotive components
• Metal parts
• Machined components
• Shiny surfaces

Creality specifically positions the X1 as capable of scanning black, shiny and metallic materials. Transparent or extremely reflective surfaces may still require scanning spray or other surface preparation.

Wireless Scanning with ScanBridge

The ScanBridge is supplied as standard with the X1, allowing wireless scanning without keeping a data cable connected to your computer.

The wireless system uses Wi-Fi 6 and incorporates a 5000mAh battery, with Creality advertising more than four hours of wireless operating time.

This is particularly useful when scanning:

• Vehicles
• Machinery
• Large components
• Objects outdoors
• Customer equipment on site

You can move freely around the object rather than constantly managing a USB cable.

Full-Colour Texture Scanning

The X1 incorporates a 2MP RGB camera and supplemental lighting for capturing full-colour textures.

This makes it useful beyond engineering applications for:

• Artwork
• Sculptures
• Cultural heritage
• Digital archiving
• VR/AR
• Character modelling
• Full-colour digital replicas

CrealityScan 4

The X1 works with CrealityScan 4, Creality’s professional scanning and point-cloud processing platform.

CrealityScan provides guided scanning, point-cloud processing, meshing, alignment and model export, while completed data can be transferred into professional reverse-engineering and inspection platforms such as QUICKSURFACE and Geomagic Design X.

Professional Applications

The CR-SERMOON-X1 is particularly well suited to:

• Reverse engineering
• Automotive scanning
• Quality inspection
• Industrial manufacturing
• Dimensional analysis
• Product development
• Mechanical engineering
• Mould and tooling development
• Replacement-part reproduction
• Restoration
• 3D printing
• Digital archiving
• Research and education

Technical Specifications

Creality’s current system requirements recommend an Intel i7 10th-generation processor, NVIDIA GPU with 8GB VRAM and 32GB RAM for Windows, or an Apple M-series Mac with at least 16GB RAM.

What’s Included

• 1 × Creality CR-SERMOON-X1 Professional 3D Scanner
• 1 × ScanBridge Wireless Scanning System
• 2 × Precision Scale Bars
• Calibration equipment
• Scanner connection accessories
• Protective carrying/storage case
• Scanner accessories
• User documentation

X1 vs P1 – Which Should You Choose?

This is worth putting on the page because the customer looking at a P1 is very likely to look at the X1 as well.

The simplest way I would explain it to a customer is:

Choose the P1 if portability and being able to scan without a computer are the priority.

Choose the X1 if maximum industrial accuracy, larger-part scanning, photogrammetry and scanning productivity are the priority.

Why Choose the CR-SERMOON-X1?

The CR-SERMOON-X1 is designed for customers who need more than simply converting an object into a 3D model.

It’s designed to produce dimensionally reliable scan data that can become part of a professional engineering workflow.

The combination of 0.02mm accuracy, 34+7+1 blue laser scanning, built-in photogrammetry, NIR structured light, deep-hole scanning, large field of view and wireless ScanBridge operation makes it particularly attractive for automotive, manufacturing, inspection and reverse-engineering businesses.

For customers scanning vehicles, large engineering components, moulds or precision manufactured parts, this is the scanner I would position at the top of your professional Creality range.
